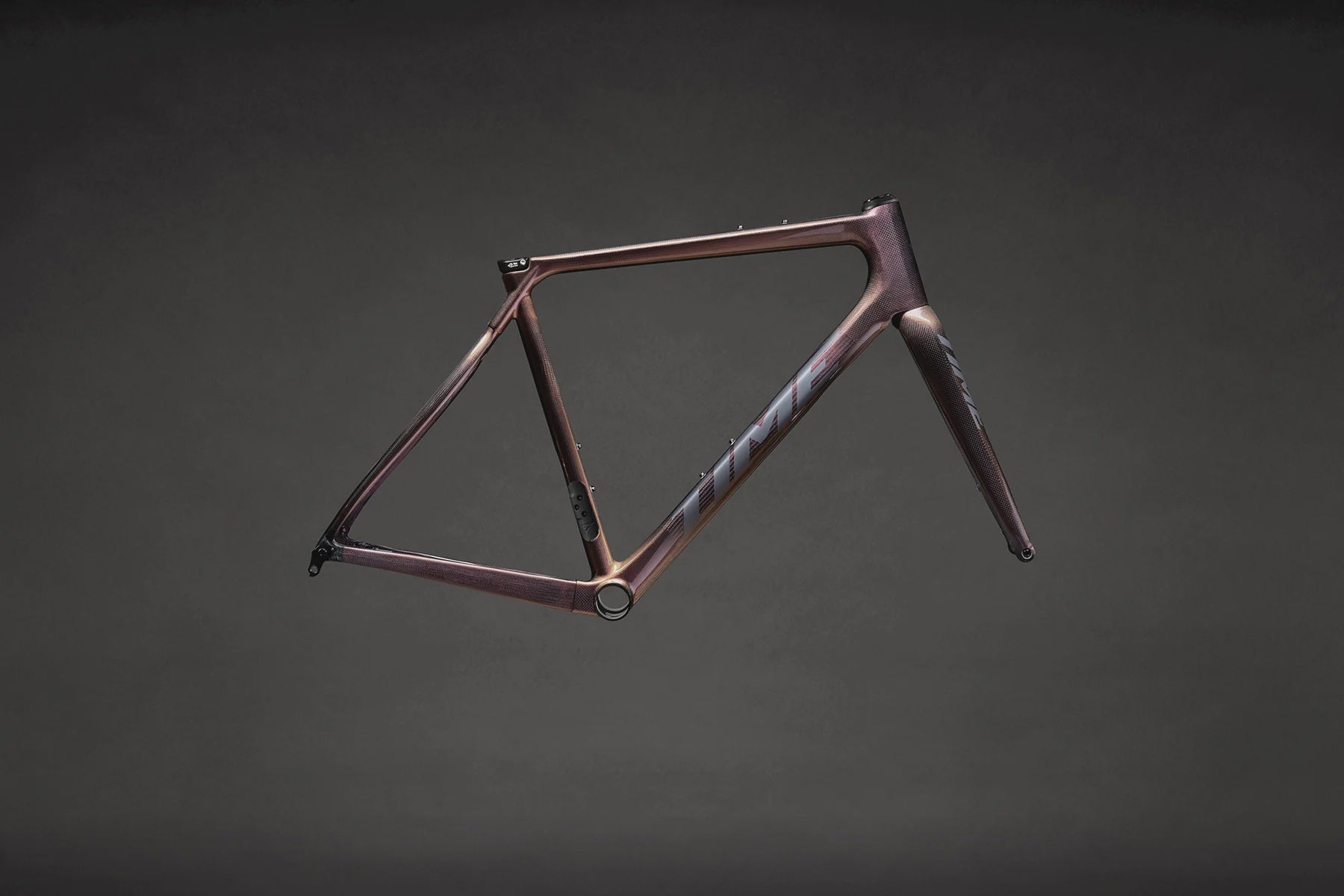

TIME Alpe d'Huez X Frameset Carbon Shift Magenta S

Meet Alpe d’Huez X – the zenith of agility and expanded possibilities. Engineered for wider road tires, it delivers a smooth ride over rough asphalt and quick accel-eration for challenging group rides.

With its versatility and comfort, Alpe d’Huez X excels on any route over any road, ensuring you’re ready to do it again tomorrow.

https://cdn.shopify.com/videos/c/o/v/3146130542684207a25703c12c1e2de9.mp4

FRAME MATERIAL
BCS Carbon Fiber, Vectran™ and Dyneema®

THRU AXLES
12x120x1.5mm Pitch F, 12x159x1.5

SEATPOST DIAMETER
ø 27.2mm

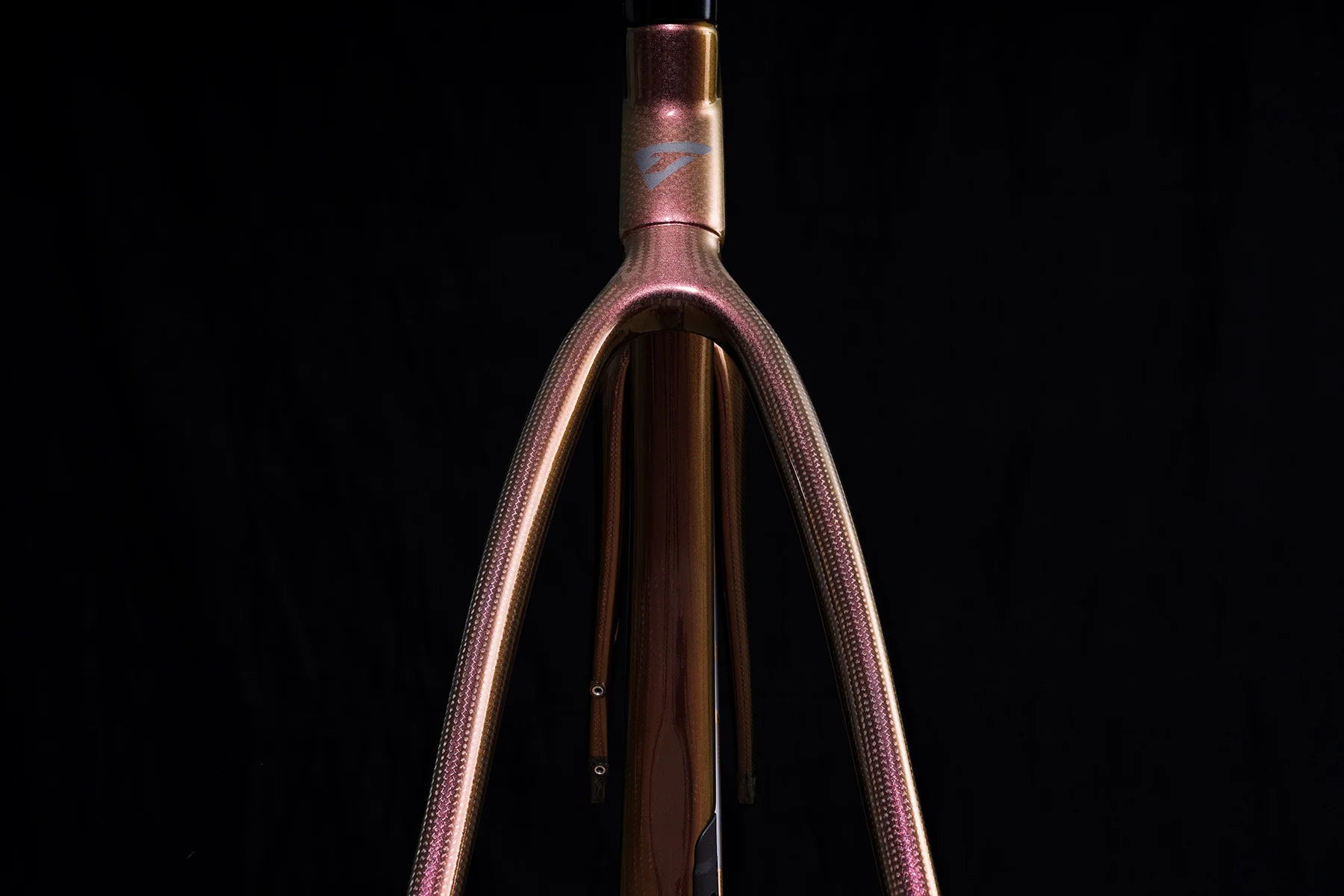

FORK STEERER TUBE
Tapered 1-1/8" to 1-1/2" Vectran™ Enhanced

SEATPOST CLAMP
Proprietary TIME Alloy

HEADSET BEARINGS
Top and Bottom 1-1/2" (with internal routing compression ring)

SHIFTING
Compatible with Electronic and Mechanical Shifting Systems

WHEEL SIZE
700c

FRONT DERAILLEUR
1X and 2X Compatible with Integrated Single Cover and Drivetrain Conversion Kit

MAXIMUM TIRE WIDTH

• 700 x 38C Road Tire, Optimized for 35C
• (not all tire/rim combinations fit with adequate clearance - check for appropriate fit)

REAR DERAILLEUR
Standard Mount

BOTTOM BRACKET
PF BB386 EVO

BRAKE TYPE
Front and Rear Flat Mount Disc

DISC HUB STANDARD
12x100mm F, 12x142mm R

ROTOR SIZE
140mm, 160mm with DM Adapter
